LYSAGHT ® brand has impressive history of over 150 years. The brand has withstood the rest of time and has set exemplary benchmarks for flexibility in its design. The product range includes timeless icons in steel roofing and wall cladding profiles that can efficiently cater to the diverse architectural requirements of the buildings.

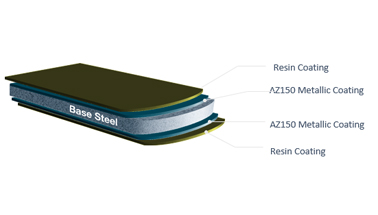

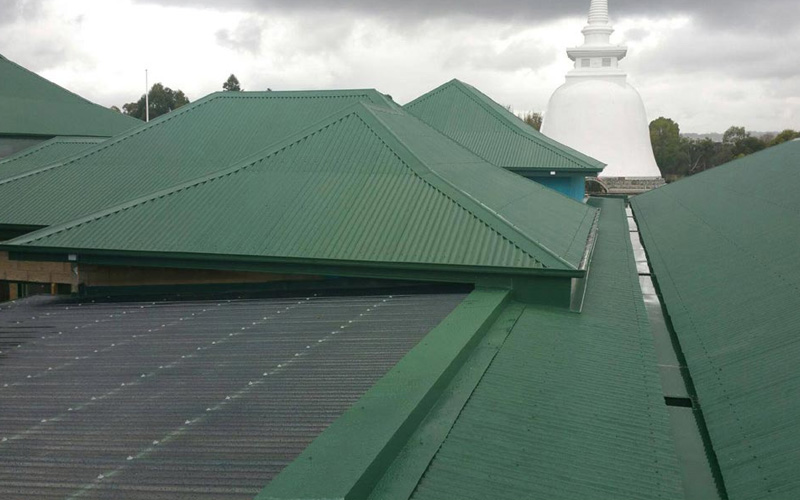

The LYSAGHT ® range of premium building products are manufactured from high quality steel products such as COLORBOND® steel and ZINCALUME® steel.

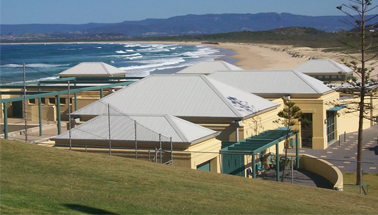

For over a decade, LYSAGHT ® roofing, walling, structural purlin and decking systems have been extensively used by thousands of construction projects throughout Asia and Australia. These include projects such as power stations, industrial buildings, airports, sports stadiums and other public buildings as well as commercial and residential buildings.

Our Research and Development team in Australia ensures the company stays at the forefront of technology through the most stringent testing procedures. When you install LYSAGHT ® products you have the comfort of knowing that they have been designed and tested to withstand harsh conditions. Products are designed and tested for wind pressure, cyclonic conditions, hail, and impact of falling debris, earthquakes and point load strength.

View More
View More
View More
View More

LYSAGHT ® Products

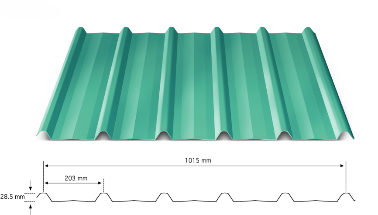

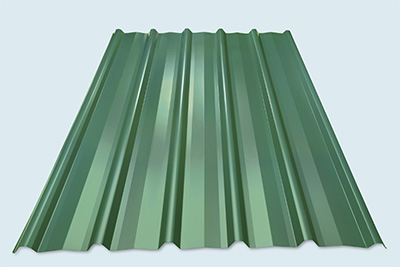

LYSAGHT ® TRIMDEK OPTIMA™

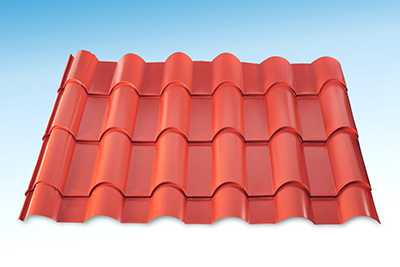

SALIKE TILE

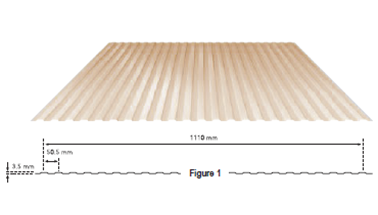

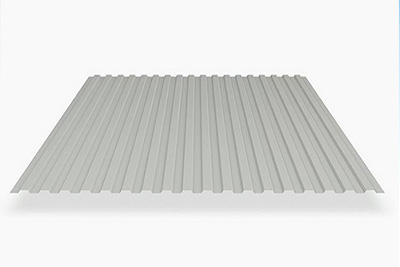

LYSAGHT ® PANELRIB ® 1110

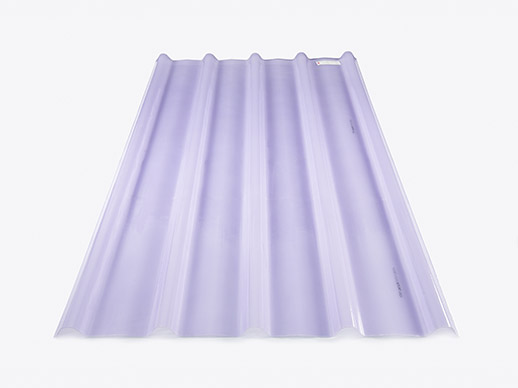

Translucent Sheets

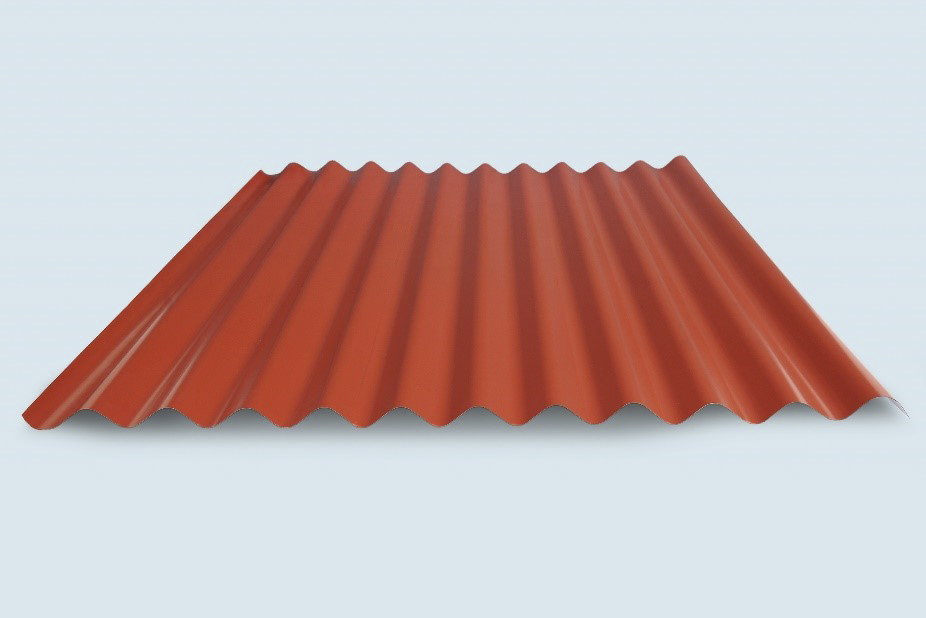

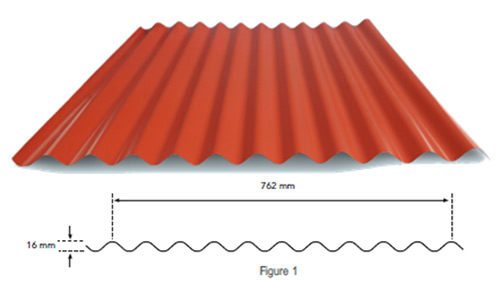

LYSAGHT ® CUSTOM ORB ® 762

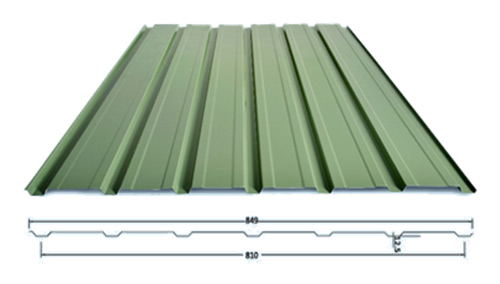

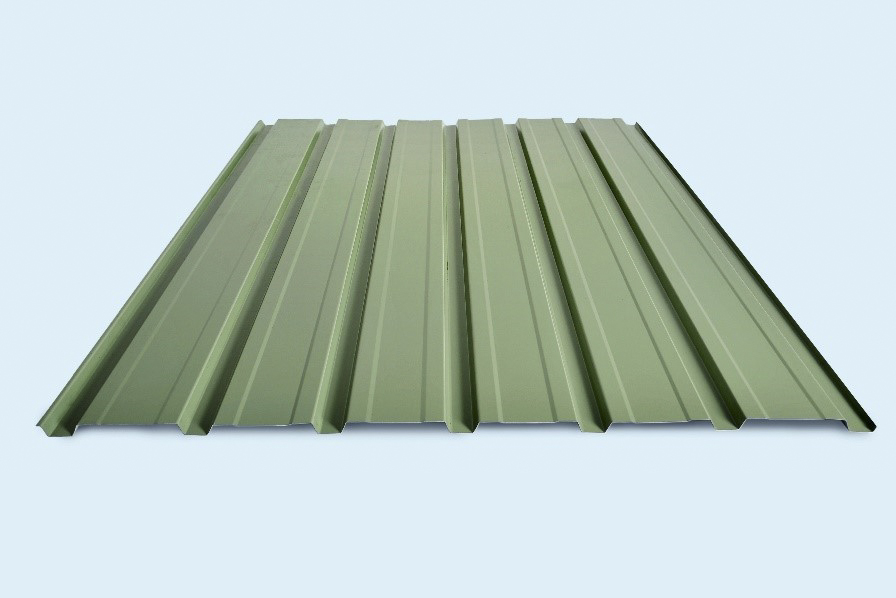

LYSAGHT ® EASY CLAD

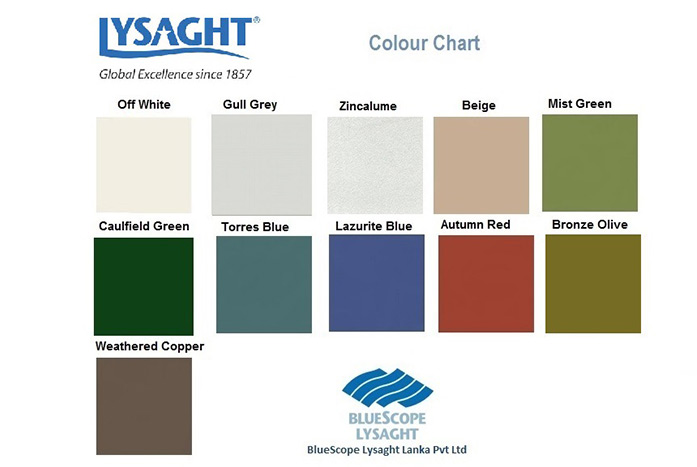

LYSAGHT ® Color Chart
Benefits
  • High strength steel for better load carrying capability and greater spanning capability
  • Zinc coated to provide corrosion resistance
  • Light weight, easy and quick to install
  • Save 40-60% steel in comparison with Angle and Channel
  • Lower maintenance cost
  • Cladding fixing is easier and quicker

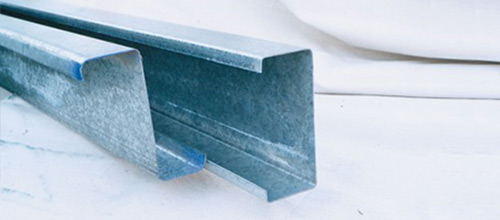

LYSAGHT ® ZED – Plus™ And CEE -Plus™

LYSAGHT ® PURLINS in CEE & ZED SECTIONS are accurately roll-formed from high strength zinc coated steel to provide and efficient, lightweight, economical roofing and cladding support system for framed structures.

They are roll-formed from ZINC HI-TEN steel complying with AS 1397-1993. Both are made from HI TENSILE steel with a galvanized coating class of Z272 to give excellent corrosion protection.

LYSAGHT ® CEE SECTION could be used in single spans and un-lapped continuous spans in construction, with the purlins butted over internal supports.

LYSAGHT ® ZED SECTIONS, with one broad and one narrow flange are designed to nest neatly and are intended for lapping over internal support. They could be used over single spans and both un-lapped and lapped continuous spans in construction. Lapped continuous span result in a considerable capacity increase in the system.

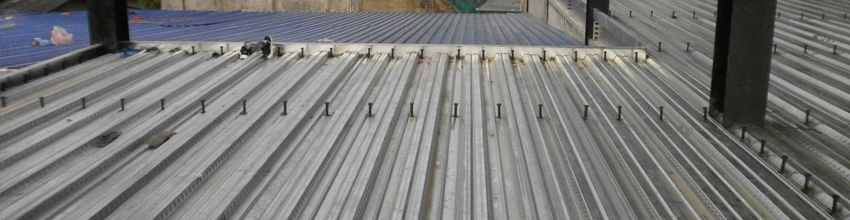

LYSAGHT ® SMARTDEK ® 51 Structural

LYSAGHT SMARTDEK ® 51 Structural Decking System is an innovative “W” profile structural decking system. It offers better greater economy and design freedom since it is precision engineered and provides ease of use as well as safety. Its excellent spanning capabilities ensure greater strength and less deflection, specially suitable for construction of composite floor slab.

SMARTDEK® 51 panel has a rib depth of 51 mm and provides an effective cover width of 960 mm. Embossments on top of the flange provide excellent mechanical interlocking between steel and concrete. In the assembled state, the profile comprises of intermediate male and female ribs for every interlocking side-lap joint.

Benefits
  • Excellent spanning capacities for greater strength and less deflection
  • Embossments provide mechanical interlock ensuring adequate composite action
  • Precision engineered; brings greater economy and design freedom
  • Ease of installation combined with safety
  • Saves on concrete and reinforcement cost
  • Greater corrosion resistance provides long life

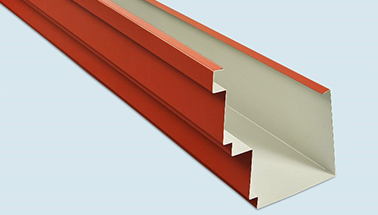

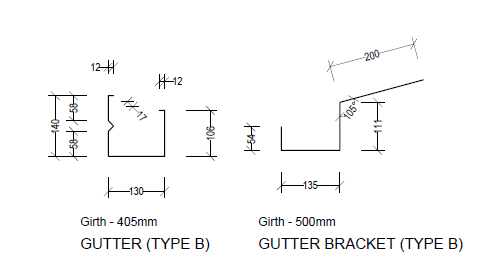

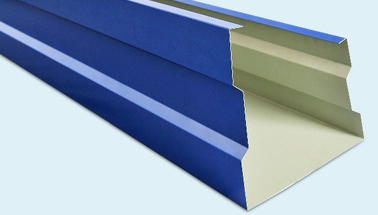

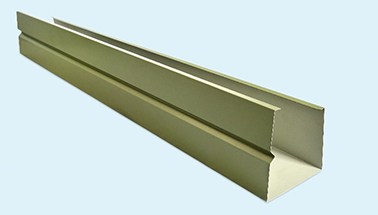

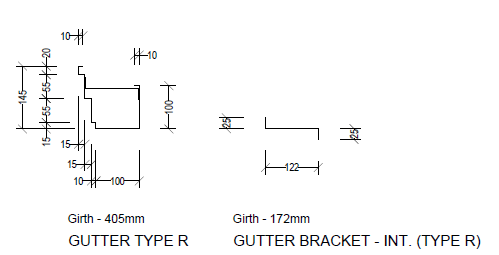

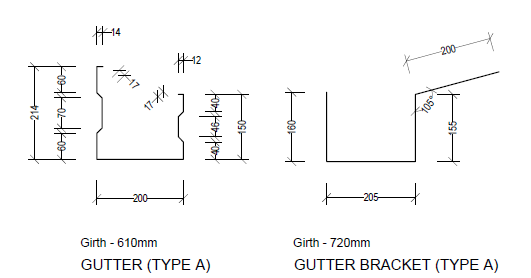

Gutters

LYSAGHT ® Gutters are manufactured from COLORBOND ® and ZINCALUME ® steel. LYSAGHT ® Guttering products come in a range of profiles to suit any style or application. There are four types of standard gutter designs available and custom made gutters also can be supplied as per the customer requirement.

Benefits
  • Exclusively made from COLORBOND ® and ZINCALUME ® steel
  • Superior strength and durability
  • Researched and tested for guaranteed performance
  • Log lasting aesthetical look
  • Choice of contemporary colors
  • Easy fixing methods
  • Less Installation cost
Type L Gutter
Type M Gutter

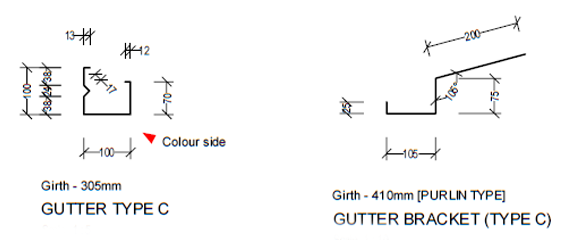

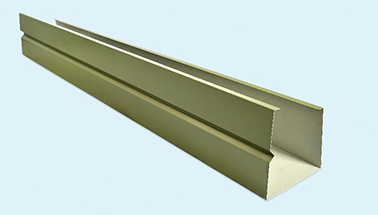

Type C Gutter
Type H Gutter
Downpipe And Accessories

To complete its range of drainage solution, we offer roll formed downpipes and down ender manufactured from ZINCALUME® and a wide range of COLORBOND® steel colours.

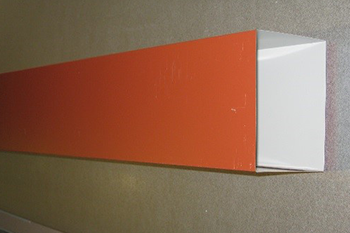

Downpipe

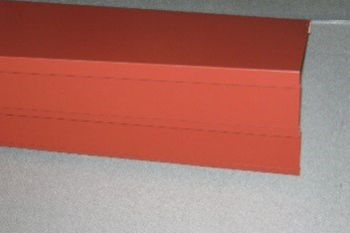

Barge Flashing

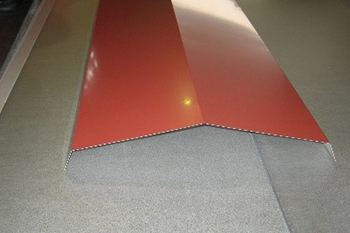

Plain Ridge

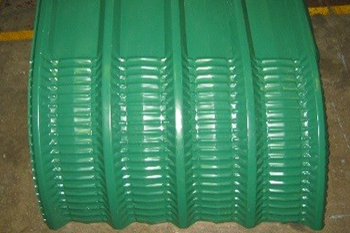

Crimp Curve

LYSAGHT ® VALUE PROPOSITION

Engineering Support
  • Engineering support through advanced design software
  • End-to-end cladding and structural steel solutions
  • Skilled workforce with consultative expertise
Wider Range
  • Specially designed profiles for varied segments & applications
  • Overall cost efficiency due to optimized steel solutions
  • Superior quality paint and coating system with long lasting aesthetics
Customer Focus
  • Our association with our customers enables us to deliver superior products and tailor-made solutions
  • Speedy response and shorter lead time with PAN India sales network
  • Practicing world-class safety standards in construction
Quality Solutions
  • World-class manufacturing facilities with advanced roll-forming equipment
  • High strength material with design flexibility
  • Strong R&D support from BlueScope Steel, Australia

Why LYSAGHT ® ?

LYSAGHT ® range of premium products are manufactured from high quality steel products such as COLORBOND ® steel and ZINCALUME®steel. These products are globally acclaimed for design flexibility, high quality and service excellence.

The LYSAGHT ® brand’s product superiority is well complemented by Tata BlueScope Steel’s expertise in offering customised solutions for diverse applications.

For over decades, LYSAGHT ® roofing, wall cladding, purlins and decking systems have been extensively used in construction projects across the globe. These projects have successfully catered to the diverse architectural requirements of industrial buildings, power stations, sports stadiums, railway stations, airport buildings, etc as well as commercial and residential buildings.

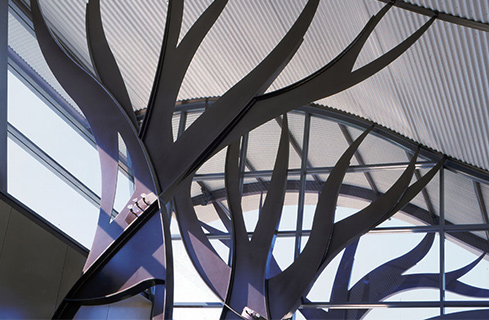

Research And Development

LYSAGHT ® brand’s on-going commitment to research and development is the driving force behind its continuous business development. Over the years, BlueScope’s LYSAGHT ® research and development center has maintained its leading business, focused on customers need and the pursuit of excellence and innovation. Driven by high quality and integrity, the centre is a fully accredited testing authority.

Our Research and Development team ensures we stay at the forefront of technology through continuous excellence towards new product research, product development and applying the most stringent testing procedures.

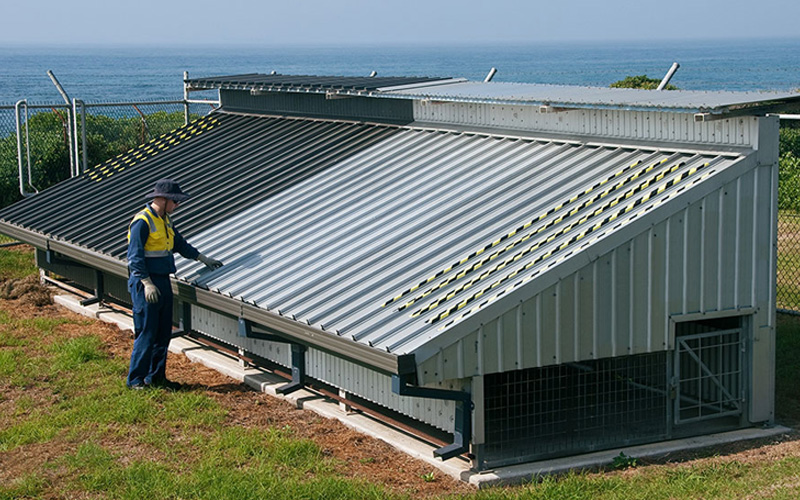

Our products are fully tested before being released in the market for wind pressure, hail, impact of falling debris, earthquake and point load strength. The claddings are also tested for cyclonic as well as non-cyclonic conditions using the latest methods by applying simulated wind pressure.

Engineering Capabilities

Tata BlueScope Steel has developed a reputation for excellence through its ability and experience to assist customers. The team of technical professionals is fully equipped with world-class design software. Right from the beginning of the design process, through the completion of construction and maintenance of the building, the team works with you to provide the best solution.

Our range of technical support includes - system solution consultancy, initial system solution design, customized solution design, engineering calculations, construction layout, detailed design (including flashing, ventilation, natural lighting, etc.), insulation instructions and after sales service.

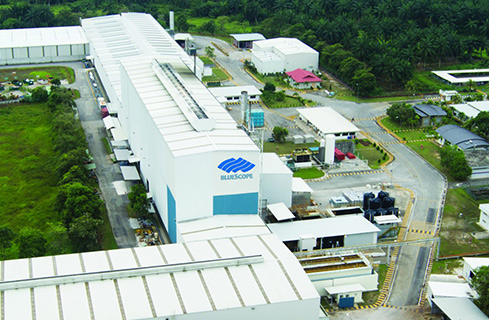

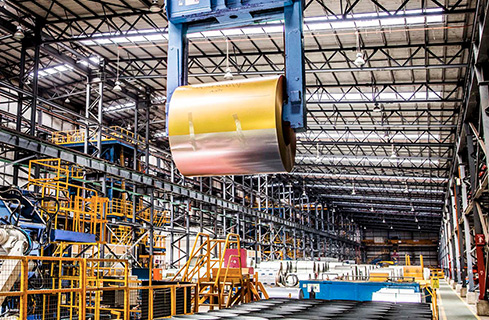

Advanced Manufacturing Capability

Tata BlueScope Steel has five strategically located manufacturing facilities operational at Pune (Maharashtra), Bhiwadi (Rajastan), Sriperumbudur (Tamil Nadu) and Jamshedpur (Jharkhand). These state-of-the-art facilities have a roll forming capacity of over 1.5 lakh million tones / per annum and manufacture high strength steel products with improved resistance to oil canning and edge rippling defects. Our plants are equipped with high end equipments from top notch machine suppliers such as Bradbury and Hayes.

World –Class Safety and Environment Standards

Our plants follow strict process governed by ISO 9001, ISO 14001:2004 Environment Management System and OHSAS 18001:2007 on Safety System.
